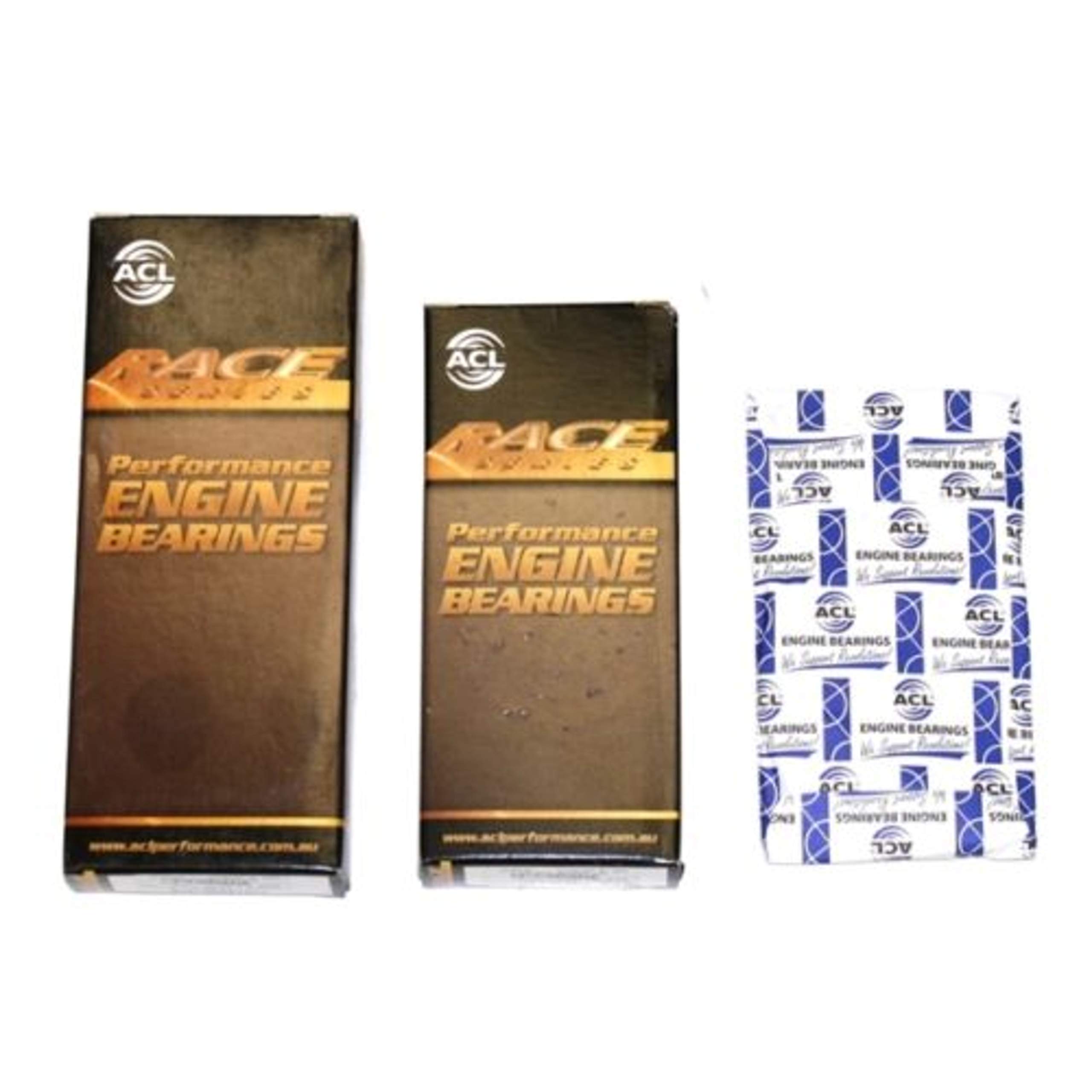

BRAND NEW IN BOX If you place demands on your engine you must demand the best! High performance driving demands that you use the best parts. So rely on ACL Race Series performance engine bearings to perform to exacting race standards you expect. They provide the dependability it takes to hold up under higher RPM conditions. The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance trimetal bearings. These ACL Race Series performance engine bearings go the distance. So, if you’re looking for the best result, demand the best - demand ACL Race Series performance engine bearings. Includes: 1) 4B1906HX-STD - One Set of Rod Bearings / 2) 5M1957HX-STD- One Set of Main Bearings / 3 ) 1T1957 - One Set of Thrust Washer
Includes 1) 4B1906HX-STD - One Set of Rod Bearings / 2) 5M1957HX-STD- One Set of Main Bearings / 3 ) 1T1957 - One Set of Thrust Washer
CON ROD BEARING SET Sizes STD // Oil Clearance + 0.001" Extra // Half Type Identical Halves // Material Tri-metal Hardened steel backs // Min Std Shaft Size 1.7707in / 44.976mm // Max Std Shaft Size 1.7717in / 45.000mm // Min Std Tunnel Size 1.8898in / 48.000mm // Max Std Tunnel Size 1.8907in / 48.024mm // Max Wall at Crown 0.0586in / 1.489mm // Max Overall Length 0.6102in / 15.50mm
MAIN BEARING SET Sizes STD // Oil Clearance + 0.001" Extra // Half Type Identical Halves // Material Tri-metal // Min Std Shaft Size 2.1646in / 54.980mm // Max Std Shaft Size 2.1654in / 55.000mm // Min Std Tunnel Size 2.3228in / 59.000mm // Max Std Tunnel Size 2.3236in / 59.020mm // Max Wall at Crown 0.0785in /1.994 mm // Max Overall Length 0.7874in / 20.00mm
Fits +98 For Honda F23A & F23Z (1998 on) 2254cc Inline 4 w/+.001 Oil Clearance
